Our products for Wood Finishing / Coating
Manual Spray Booth : Dry 3 Mtr & 4 Mtr
- OSHAS Standard
- 100% in-house UNIQUE design
- "TFT" [Triple Filtration Technology] Technology
- EU norms for mechanical & CE compliance for Electrical & Controls
- Care for Environment
- Powerful Suction Blower
- Ease of Maintenance
- Negligible Consumables
Models
- Basic (Paper Booth)
- Premium (TFT)

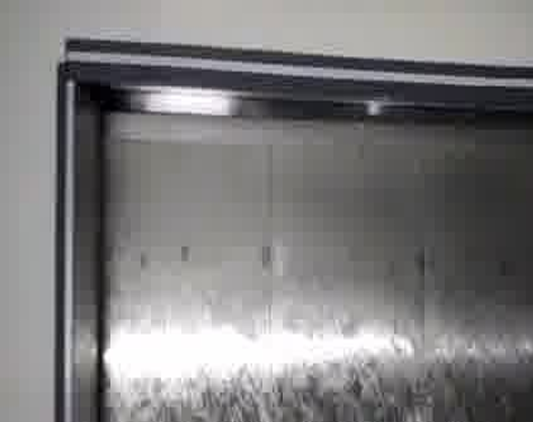

Manual Spray Booth : Wet 3 Mtr & 4 Mtr
- OSHAS Standard
- 100% in-house UNIQUE design
- SS 304 Curtain with Uniform Water Flow
- EU norms for mechanical & CE compliance for Electrical & Controls
- Care for Environment
- Powerful Suction Blower
- Ease of Maintenance
- Negligible Consumables
RainSpray - W
- 100% Inhouse Design & Manufactured with Contemporary Technology
- Rain Spray - W produces peerless quality product with:
- Uniform coating
- ZERO Peel Off
- Lowest Energy Consumption Product
- High Productivity - 400-500 Sqft/Hr
- Sensor Based for Paint Saving
- Minimum Wastage & Fully Automatic
- Ease Of Operation with Flexibility
| MODEL | RS-W | RS-WJ |
|---|---|---|
| Machine Speed | 1 - 3 Mtrs / Min | 1 - 3 Mtrs / Min |
| Effective Spray Width | 1350 mm | 1850 mm |
| Minimum Length Of Product | 175 mm | 175 mm |
| Maximum Width of product | 1400mm | 1900mm |
| Thickness Range | Up to 90 mm | Up to 90 mm |
| Power Installed | 9 Kw | 9 Kw |

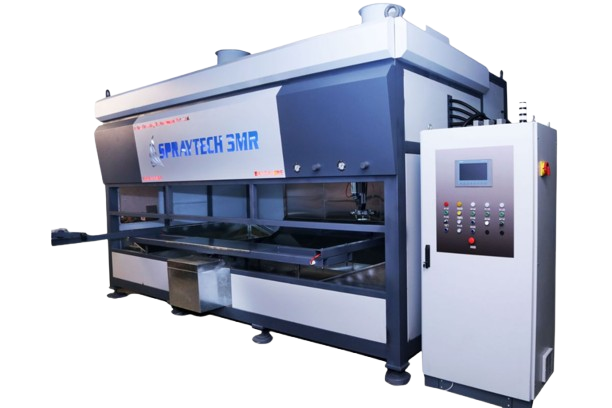

Spraytech - 3 MR
- 100% Inhouse Design & Manufactured with Contemporary Technology
- Spraytech - 3MR produces peerless quality product with:
- Uniform coating
- Covers Edges & Face with 3 Axis Control
- Automatic Tilting
- High Viscous Lacquers
- ZERO Peel Off
- Single Machine for Door & Door Frame.
| MODEL | SPR-3MRF | SPR-3MRF1 |
|---|---|---|
| Maximum Thickness of Product | 75 mm | 75 mm |
| Minimum Length Of Product | 6 Feet | 6 Feet |
| Maximum Length Of Product | 8 Feet | 8 Feet |
| Production Capacity - Door | 10 Nos./ Hr [Sigle Coat Both Side] | 10 Nos./ Hr [Sigle Coat Both Side] |
| Production Capacity - Individual Frames | 17 Nos. / Hr [Sigle Coat Three Side] | 17 Nos. / Hr [Sigle Coat Three Side] |
| Production Capacity - Assembled Frames | NO | 15 Nos. / Hr [Sigle Coat 3 + 3 Side] |
| Power Installed | 15 Kw | 15 Kw |

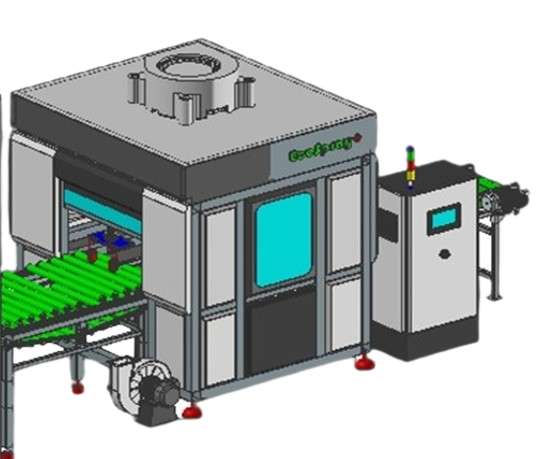

EcoSpray
- UNIQUE - 100% Inhouse Design & Manufactured with Simple Technology
- Economical Spray Machine for Smaller Size Products
- Consistency in Quality
- Mass Production Product
- User Friendly
- Maximum Effective Spray Width - 750 mm
- NO Sensor
| MODEL | EcoSpray |
|---|---|
| Infeed Speed | 1.5 Mtrs / Min |
| Maximum Thickness of Product | 75 mm |
| Maximum / Effective Spray Width | 750 mm |
| Maximum Weight Of Product | 50 Kg |
| Production Capacity - Individual Frames | 17 Nos. / Hr [Sigle Coat Three Side] |
| Power Installed | 7.5 Kw |
Pressurize Clean Room / Flash Off Room
- 100% Inhouse Design & Manufactured with Contemporary Technology
- OSHAS Standard
- Complete Line with Booth is “TFT” Technology
- Energy Saving with Day / Night Mode
- Air Balancing with VFD Control
- ISI Standard Puff Panel
- Negligible Consumables
Painting Room & Flash-off Room is installed with precise two-way Air balancing system. The fresh Air Blowers are installed with VFD for precise air control & also for energy saving. Drying room blower will have a Day & Night mode for energy saving. This contemporary technology not only protects painter against the harmful gas given off during painting but also gives consistency in producing quality product all the time, due to flexibility in varying the speed of blower. Even AHU are manufactured with Double Filtration.
The expansion chamber in painting & Drying room is located in the upper part of the painting room, in the best position for an optimal distribution of the super-filtered air. This system allows a flow of air transverse type for an optimal extraction of humidity on the painted pieces. Air super filtration is ensured by a plenum consisting of micro filters pockets. Microfilters are self-extinguishing and made of fabric and synthetic binders. The microfilters pocket can easily be remove and inspected.
The fumes exhaust unit / Solvent Extraction Unit is installed on top of Drying Room in the area opposite to the painting booth. This unit draws out the harmful gas / solvent given off by the materials already painted / coated and placed in the drying area. The fumes exhaust system prevents contact with harmful.
